How Different Materials Bestow Unique Properties on Flexible Printed Circuits

Views: 395 Author: Site Editor Publish Time: Origin: Site

In Flexible Printed Circuit (FPC), different materials of reinforcement materials each play a key role to meet the performance requirements of FPC in different application scenarios. The following stiffener materials are commonly used by Sienta , including steel stiffener , PI stiffener , FR4 stiffener and PET stiffener.

Types Material : Application Characteristics
Steel Stiffeners Stainless steel or other alloy steel. Used in areas requiring high strength and hardness, typically in connector parts or where bending and deformation need to be prevented. High strength, high hardness, wear-resistant, but heavier, which affects the overall flexibility of the FPC
PI Stiffeners Polyimide Widely used in areas that need a certain hardness but should retain some flexibility Lightweight,high-temperature resistant, good electrical insulation properties, enhances the mechanical strength of the FPC while maintaining some flexibility.
FR4 Stiffener Fiberglass epoxy (FR4). Usually used in connector areas or other places that require stability High strength, good dimensional stability, high-temperature resistant, but heavier and harder than PI stiffener
PET Stiffener Polyester Used in areas that need increased mechanical strength but have low temperature requirements. Low cost, easy processing, but lower high-temperature performance and electrical properties compared to PI and FR4.

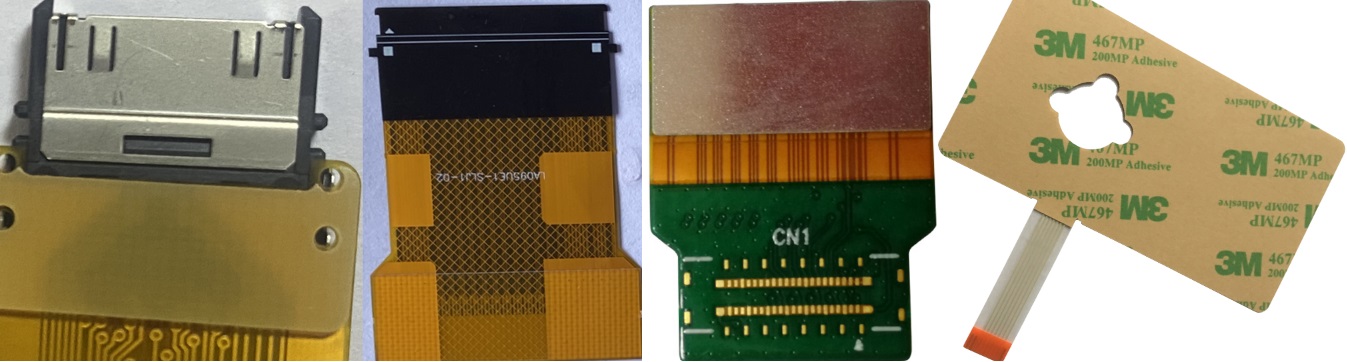

FR4 Stiffener PI Stiffener Steel stiffener PET stiffener

Performance Characteristics

  • Mechanical Strength : Stiffener materials significantly enhance the mechanical strength of FPCs, preventing breakage or deformation due to excessive bending and stretching.

  • Flexibility and Rigidity Balance : Different stiffener materials offer varying degrees of rigidity. Choosing the appropriate stiffener material can provide necessary rigidity while maintaining some flexibility of the FPC.

  • Thermal Stability : In high-temperature environments, PI and FR4 materials offer superior stiffener performance, suitable for applications requiring high thermal stability.

  • Electrical Insulation Performance : PI stiffener materials have excellent electrical insulation properties, suitable for high voltage or high electrical performance applications.

  • Weight Impact : Different stiffener materials affect the overall weight of the FPC. Steel plates are the heaviest, while PI and adhesive stiffener s are relatively lightweight.

  • Processability : The ease of processing stiffener materials varies. Adhesive and PET stiffener are easier to process, while steel plates and FR4 require more complex processing.

Different materials of stiffener in the FPC each play an irreplaceable role, they provide mechanical support, enhance circuit performance, improve heat resistance and stability, etc., to ensure that the FPC in a variety of application scenarios, reliable operation. When selecting stiffener materials, it is necessary to consider the FPC application environment, performance requirements and cost and other factors in order to select the most appropriate stiffener materials.
