The advantages of flexible circuit

Views: 458 Author: Site Editor Publish Time: Origin: Site
The flexible circuit  is designed for saving room and improving the flexibility of design to meet a smaller and higher density mounting design, it also helps to reduce the assembly process and enhance reliability. In brief, FPC is the only solution to ensure the miniaturization and moving of electronic products.

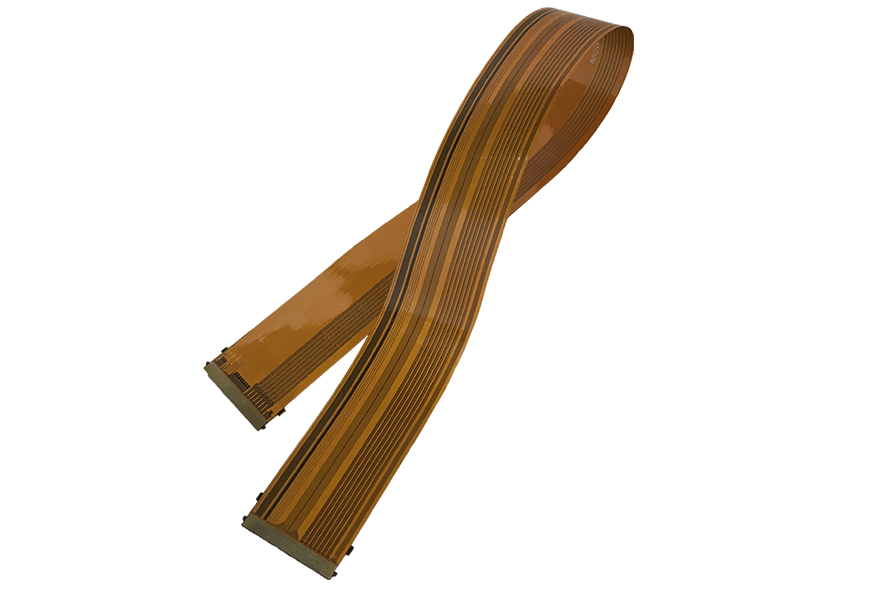

The flexible cable
is etched copper circuit with polymer substrate, or the circuit printed with polymer thick film. For both thin and light, compact structure and complex devices, the solutions ranging from single conductive line to a complex multilayer3D package. The total quality and volume of Flexible package less 70% than the traditional wire harness. The strength of flexible circuit can also be enhanced by using reinforce materials or base material to obtain additional mechanical stability.


The flexible PCB
can be moved, bending, torsion without damage to the conductor, Different outline and special packaged size are permitted. The only limit is the volume. Because it can withstand millions of dynamic bending, flexible circuit can be well applied in the continuous movement or the periodic motion of the internal connection system and become part of the end product’s function. Products required electrical signal / power movement and small shape coefficient / package size are all benefited from flexible circuit.

Flexible circuit provides excellent electric performance. Low dielectric constant to allow electrical signal transmission; good thermal properties make cooling of components easier; a higher glass transition temperature or melting point keep the components operate very well in the high temperature.

Due to hardware for internal connection reduced, such as common solder point which used for the traditional electronic packages, trunk line, the bottom line and cable, flexible circuit can provide higher assembly reliability and output. Higher dislocation of components appeared easier while assembly Because of the traditional interconnecting hardware composed by complex multiple systems. With quality engineering coming out, a thin flexible system is designed for only one-way assembly, thereby eliminating the human error related to usual and independent routing works.

Early flexible circuit is mainly used in small or thin electronic products and connecting yield of rigid printed board. But it is gradually applied to computer, digital camera, printer, car audio, drive of CD-ROM and hard disk and other electronic products in the end of nineteen seventies. Open a 35mm camera, there are 9~14 different flexible circuits. The only way to reduce the size is smaller, more sophisticated assembly lines, more close pitch, and the object can be bent. Today, almost all of products with flexible circuit such as Cardiac pacemaker, medical equipment, video cameras, hearing aids, laptop.
×
