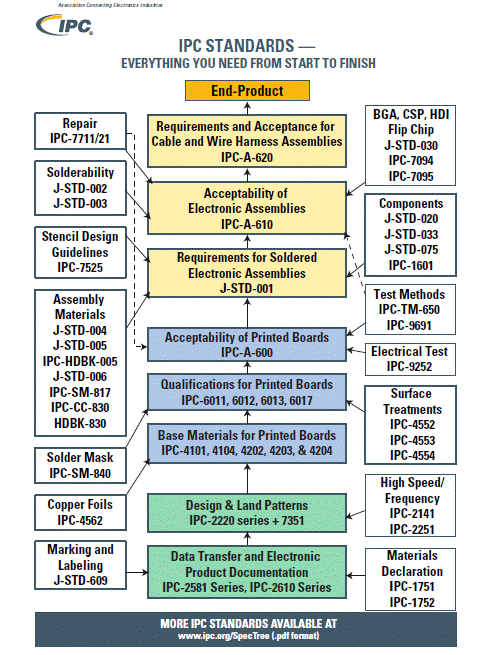

IPC Standards from design to end electronic product
Views: 161Author: Site EditorPublish Time: 2023-05-24Origin: Site
Design
1. Data Transfer and Electronic product documentation---IPC-2581 series and IPC-2610 series
Another IPC standard we will use
A: Material Declaration---IPC-1751 and IPC-1752
B: Marking and Labeling---J-STD-609

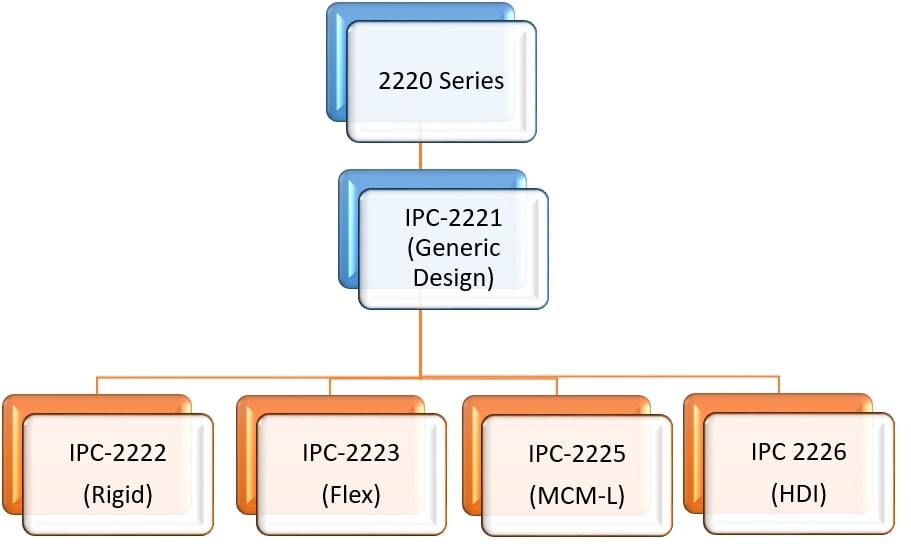

2. Design & Land Patterns---IPC-2220 series
Another IPC standard we will use
A: High speed/Frequency---IPC-2141 and IPC-2251
Printed circuit boards
1.Base materials for printed boards---IPC-4101B
Another IPC standard we will use
A: Copper Foils---IPC-4562
2. Qualification forprinted boards---IPC-6012
Another IPC standard we will use
A: solder mask---IPC-SM-840
B: surface treatments---IPC-4552 and IPC-4553 and IPC-4554
3. Acceptability of printed boards---IPC-A-600H
Another IPC standard we will use
A: Test methods---IPC-TM-650 and IPC-9691
B: Electrical Test---IPC-9252
C: Repair---IPC-7711/21
Assembly
1. Requirements for soldered Electronic Assemblies---J-STD-001
Another IPC standard we will use
A: Components---J-STD-020 and J-STD-033 and J-STD-075
B: Stencil Design Guidelines---IPC-7525
C: Assembly Materials---J-STD-004 and J-STD-005 and IPC-HDBK-005 and J-STD-006 and IPC-SM-817 and IPC-CC-830 and HDBK-830
2. Acceptability of Electronic Assemblies
Another IPC standard we will use
A: Repair---IPC-7711/21
B: Solderability---J-STD-002 and J-STD-003
C: Test Methods---IPC-TM-650 and IPC-9691
D: BGA, CSP, HDI Flip chip---J-STD-030 and IPC-7094 and IPC-7095
3. Requirements and Acceptance for cable and wire harness assemblies---IPC-A-620
